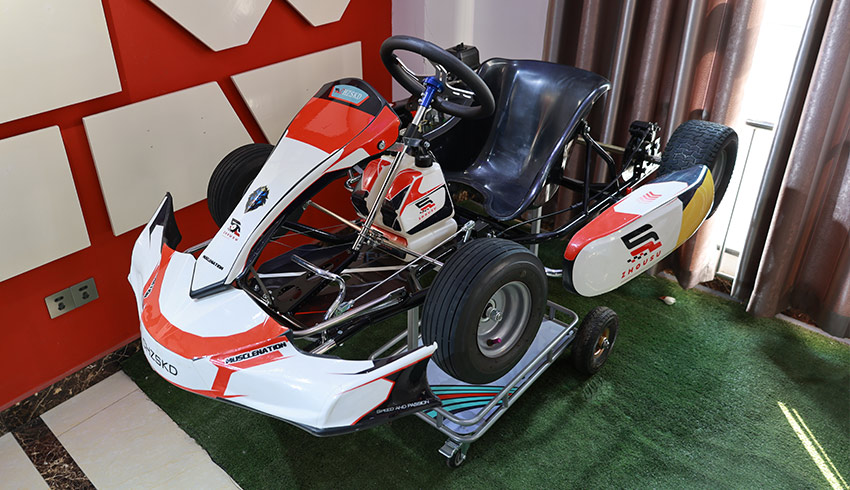

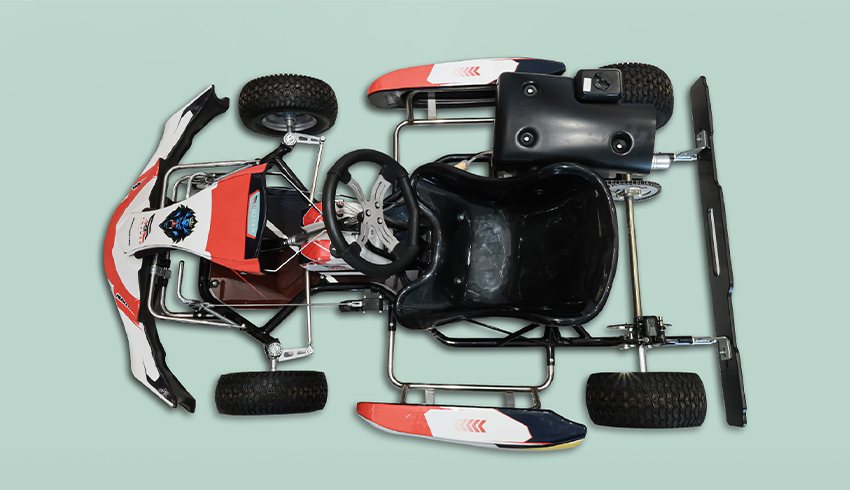

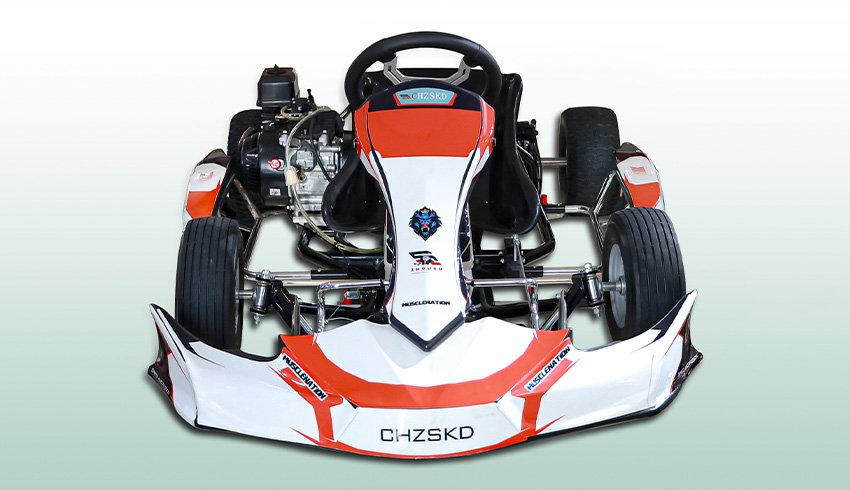

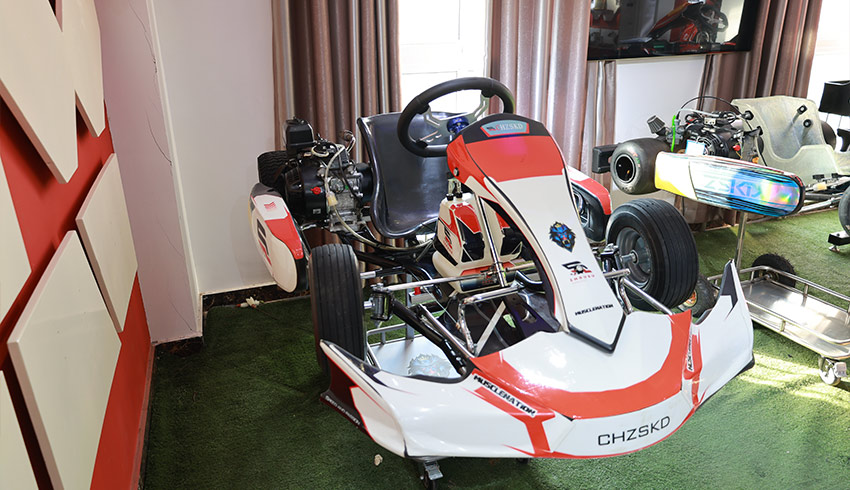

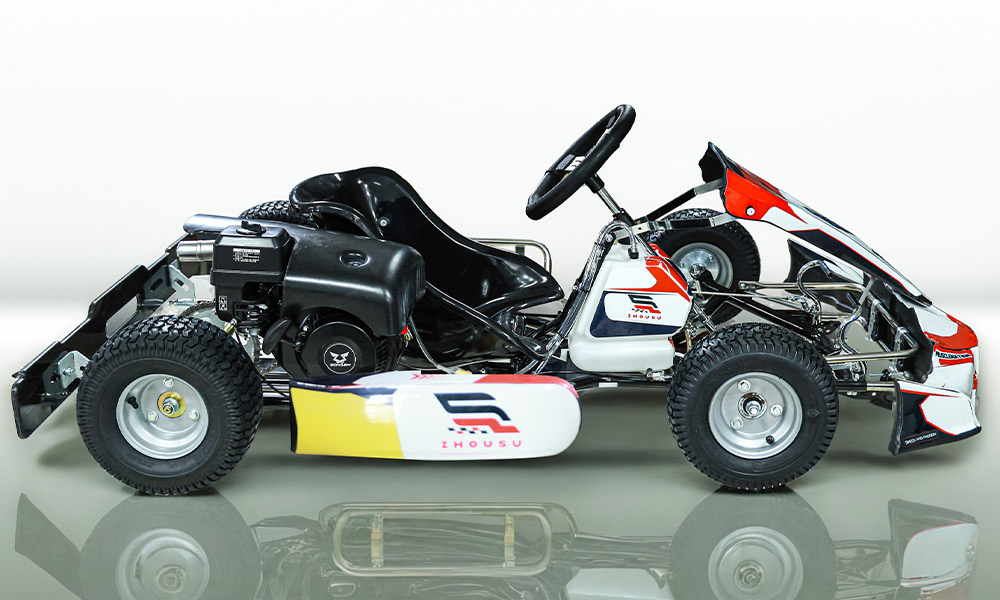

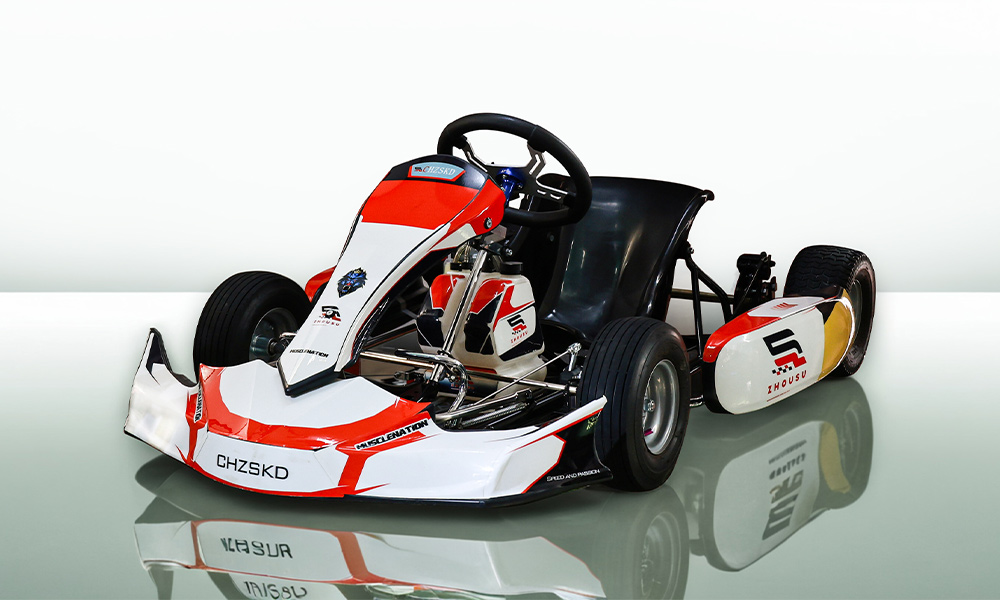

FO-225 is an entry-level off-road entertainment go kart designed for adventure parks, outdoor rental tracks, and personal recreational use.
Equipped with 6-inch turf tires and chain transmission, it delivers strong torque, stable handling, and excellent adaptability to different terrains.
Powered by a 4-stroke engine (8–9 HP class), FO-225 can reach speeds of up to 70 km/h, offering an exciting yet controllable driving experience.

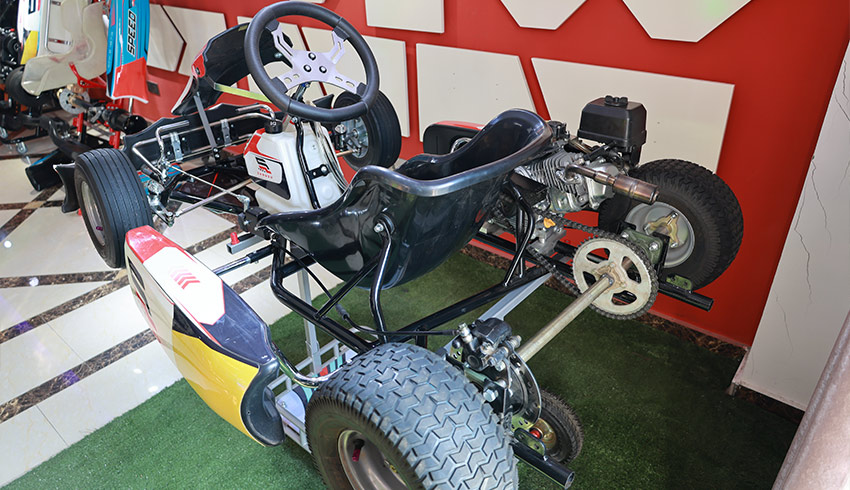

Its medium-carbon steel chassis, reinforced rear axle, and independent PE impact protection ensure durability, safety, and long service life.


This model is ideal for:
Outdoor amusement parks
Grass & dirt tracks
Entry-level karting venues
Family entertainment centers
Personal off-road karting use
Entry-level design with high playability
Suitable for grass, dirt, concrete, and asphalt

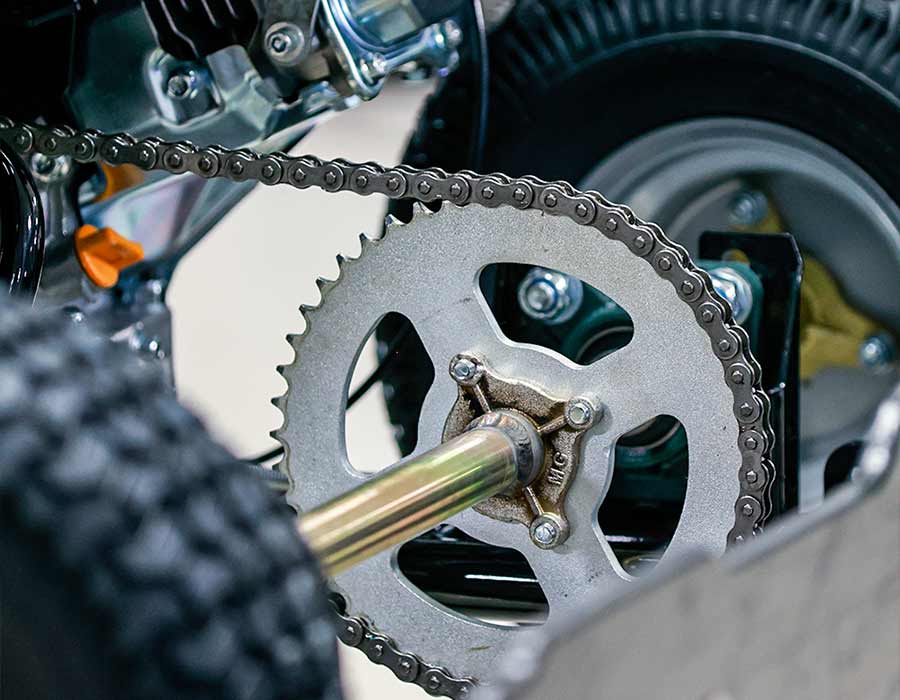

Strong torque via 420 chain transmission
Reinforced steel frame for rental-grade durability
Low maintenance & easy operation
| Chassis & Dimensions | |
| Item | Specification |
| Overall Length | 1880 mm |
| Overall Width | 1350 mm |
| Overall Height | 650 mm |
| Wheelbase | 1000 mm |
| Net Weight | 95 kg |
| Frame Material | Medium-Carbon Steel |
| Frame Technology | MIG + Laser Welding + Stress Heat Treatment |
| Rear Axle | Ø30 mm Solid Rear Axle |
| Power & Drivetrain | |
| Item | Specification |
| Engine Type | 4-Stroke Engine |
| Power Output | 8 HP @ 5800 rpm (9 HP optional) |
| Max Torque | 11.5 Nm @ 2500 rpm |
| Transmission | 420 Chain Drive |
| Clutch | Dry Centrifugal Clutch |
| Starting Method | Recoil Start |
| Fuel Tank Capacity | 6.5 L |
| Control & Safety | |
| Item | Specification |
| Brake System | Single Disc Hydraulic Caliper |
| Steering Ratio | 1:1 Standard |

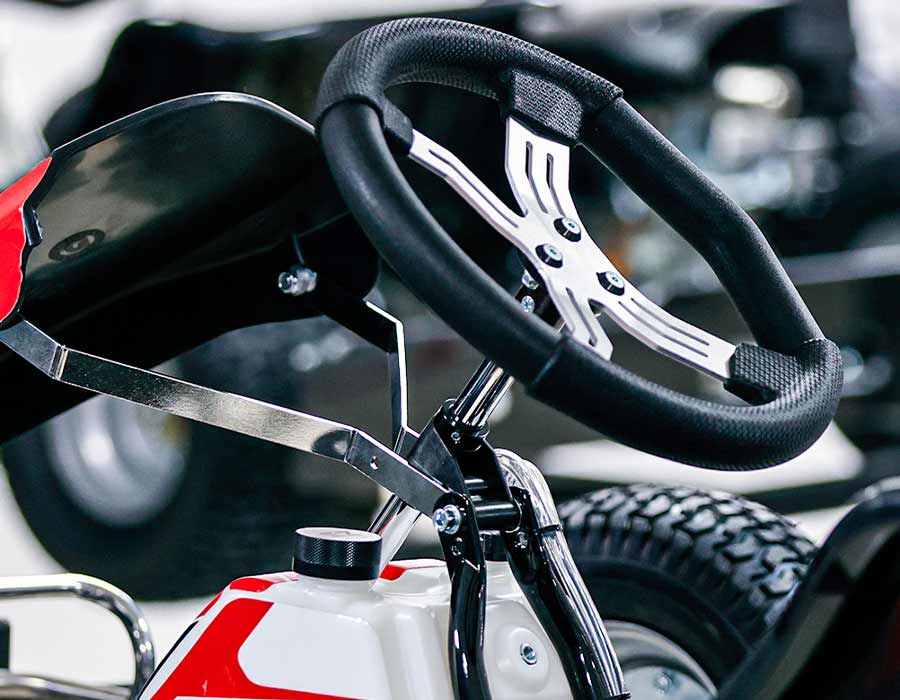

| Steering Wheel | 300 / 320 / 330 mm Options |
| Front Protection | Independent PE Collision Plate |
| Safety Structure | 20 mm Reinforced Safety Bracket |
| Seat | Thickened Reinforced Seat |
| Tires | 6-inch Grass Tires (All-Terrain) |
Q1: Is FO-225 suitable for rental or amusement parks?
Yes. The reinforced steel frame, simple mechanical structure, and hydraulic brake system make it suitable for entry-level rental and daily operation.
Q2: What surfaces can this go kart run on?
It performs well on grass, dirt, concrete, and asphalt, thanks to the 6-inch turf tires and high-torque chain drive.
Q3: Can speed be limited for beginners or kids?
Yes. Speed limitation and engine tuning can be applied based on your safety or operation requirements.
Q4: Do you support OEM or customization?
Yes. We support OEM / ODM, including color, logo, configuration, and packaging customization.
Q5: What after-sales support do you provide?
We provide technical guidance, spare parts supply, and long-term support for distributors and park operators.
